Isolierkörper | Thermoplastischer Kunststoff, nach UL94 V-0 |
---|---|
Kontaktmaterial | Vierkantstift 0,46mm, Kupferlegierung |
Kontaktoberfläche | Lt. Oberflächenoptionen, über Ni (1,3 ... 2,5µm) |
Lötbarkeit | IEC 60512-12A |
Durchgangswiderstand | < 20mΩ |
Isolationswiderstand | > 500MΩ |
Spannungsfestigkeit | 500VAC |
Nennspannung | 250VAC |
Nennstrom | 1A |
Temperaturbereich | -40°C ... +105°C |
Verarbeitung | Wellen- oder Reflow-Lötverfahren |
Series | Contacts | Type | Plating |
---|---|---|---|
378 | 036 | 1 | 00 |
020 026 030 034 040 050 060 068 080 100 |

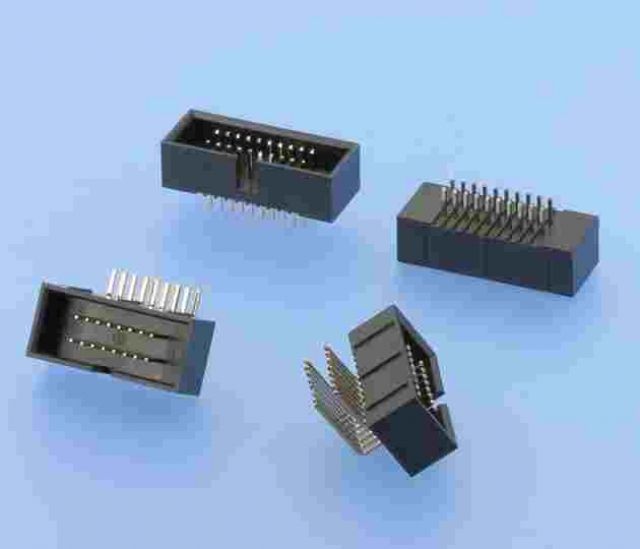

1 Gerade 2 Gewinkelt |
00 Vergoldet |
