Isolierkörper | Thermoplastischer Kunststoff, nach UL94 V-0 |
---|---|
Kontaktmaterial | Hülse: Messing gedreht Feder: 4-Lamellen-Clip, Beryllium-Kupfer |
Kontaktoberfläche | Lt. Oberflächenoptionen, über Ni (1,3 ... 2,5µm) |
Lötbarkeit | IEC 60512-12A |
Durchgangswiderstand | < 10mΩ |
Isolationswiderstand | > 1000MΩ |
Spannungsfestigkeit | 1kVRMS |
Nennspannung | 100VRMS / 150VDC |
Nennstrom | 3A |
Temperaturbereich | -55°C ... +125°C |
Verarbeitung | Reflow-Lötverfahren |
Series | Contacts* | Type* | Sleeve Plating | Clip Plating* | Packaging* |
---|---|---|---|---|---|
7452 | 010 | 3 | 50 | 00 | PPST |
003-050 Einreihig 004-100 Zweireihig |

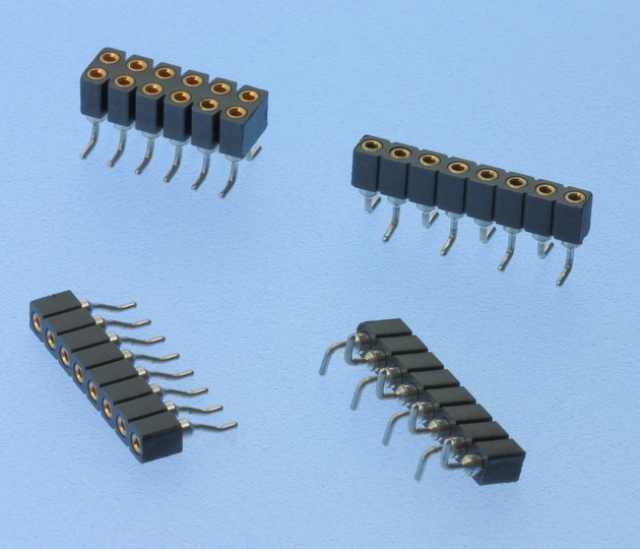

1 Einreihig B1, stehend 2 Einreihig B2, stehend 3 Zweireihig, stehend 4 Einreihig, liegend |
50 Hülse verzinnt |
00 Feder vergoldet 10 Feder 0,25µm Gold (Option) 30 Feder 0,75µm Gold (Option) |
ST In Stangen ohne Pick&Place-Pads PPST In Stangen mit P&P-Pads PPTR (Option) Tape & Reel mit P&P-Pads |
